3. Integrate with Loki¶
In this section, we will integrate the myapp charm charm with Loki to send workload logs. This step of the tutorial assumes you have completed the previous step.
3.1 Update the Go charm¶
Open the internal/charm/charm.go file, instantiate a Logging object from the charm-libraries package and enable the logging endpoint. Here's the updated code:
package charm
import (
"bytes"
"fmt"
"strings"
"github.com/canonical/pebble/client"
"github.com/gruyaume/charm-libraries/logging"
"github.com/gruyaume/goops"
"gopkg.in/yaml.v3"
)
const (
ConfigPath = "/etc/myapp/config.yaml"
LoggingIntegrationName = "logging"
ServiceName = "myapp"
ContainerName = "myapp"
)
type ServiceConfig struct {
Override string `yaml:"override"`
Summary string `yaml:"summary"`
Command string `yaml:"command"`
Startup string `yaml:"startup"`
}
type PebbleLayer struct {
Summary string `yaml:"summary"`
Description string `yaml:"description"`
Services map[string]ServiceConfig `yaml:"services"`
}
type PebblePlan struct {
Services map[string]ServiceConfig `yaml:"services"`
}
type JujuConfig struct {
Port int `json:"port"`
}
func Configure() error {
c := JujuConfig{}
err := goops.GetConfig(&c)
if err != nil {
return fmt.Errorf("could not get config: %w", err)
}
if c.Port < 1 || c.Port > 65535 {
_ = goops.SetUnitStatus(goops.StatusBlocked, "invalid config: port must be between 1 and 65535")
return nil
}
err = goops.SetPorts([]*goops.Port{
{Port: c.Port, Protocol: goops.ProtocolTCP},
})
if err != nil {
return fmt.Errorf("could not set ports: %w", err)
}
pebble := goops.Pebble(ContainerName)
_, err = pebble.SysInfo()
if err != nil {
_ = goops.SetUnitStatus(goops.StatusWaiting, "waiting for pebble to be ready")
return nil
}
configFileChanged, err := syncConfig(pebble, c.Port)
if err != nil {
return fmt.Errorf("could not sync config: %w", err)
}
err = syncPebbleService(pebble)
if err != nil {
return fmt.Errorf("could not sync pebble service: %w", err)
}
if configFileChanged {
_, err = pebble.Restart(
&client.ServiceOptions{
Names: []string{ServiceName},
},
)
if err != nil {
return fmt.Errorf("could not start pebble service: %w", err)
}
goops.LogInfof("Pebble service restarted")
}
i := &logging.Integration{
RelationName: LoggingIntegrationName,
ContainerName: ContainerName,
}
err = i.EnableEndpoints()
if err != nil {
goops.LogDebugf("Could not enable logging endpoints: %v", err)
}
_ = goops.SetUnitStatus(goops.StatusActive, "service is running on port", fmt.Sprintf("%d", c.Port))
return nil
}
type MyAppConfig struct {
Port int `yaml:"port"`
}
func getExpectedConfig(port int) ([]byte, error) {
c := MyAppConfig{
Port: port,
}
b, err := yaml.Marshal(c)
if err != nil {
return nil, fmt.Errorf("could not marshal config to YAML: %w", err)
}
return b, nil
}
func syncConfig(pebble goops.PebbleClient, port int) (bool, error) {
expectedContent, err := getExpectedConfig(port)
if err != nil {
return false, fmt.Errorf("could not get expected config: %w", err)
}
target := &bytes.Buffer{}
err = pebble.Pull(&client.PullOptions{
Path: ConfigPath,
Target: target,
})
if err != nil {
goops.LogInfof("could not pull existing config from pebble: %v", err)
}
if target.String() == string(expectedContent) {
goops.LogInfof("Config file is already up to date at %s", ConfigPath)
return false, nil
}
err = pebble.Push(&client.PushOptions{
Source: strings.NewReader(string(expectedContent)),
Path: ConfigPath,
})
if err != nil {
return false, fmt.Errorf("could not push config to pebble: %w", err)
}
goops.LogInfof("Config file pushed to %s", ConfigPath)
return true, nil
}
func syncPebbleService(pebble goops.PebbleClient) error {
err := addPebbleLayer(pebble)
if err != nil {
return fmt.Errorf("could not add pebble layer: %w", err)
}
goops.LogInfof("Pebble layer created")
_, err = pebble.Start(&client.ServiceOptions{
Names: []string{ServiceName},
})
if err != nil {
return fmt.Errorf("could not start pebble service: %w", err)
}
goops.LogInfof("Pebble service started")
return nil
}
func addPebbleLayer(pebble goops.PebbleClient) error {
layerData, err := yaml.Marshal(PebbleLayer{
Summary: "MyApp layer",
Description: "pebble config layer for MyApp",
Services: map[string]ServiceConfig{
ServiceName: {
Override: "replace",
Summary: "My App Service",
Command: "myapp -config " + ConfigPath,
Startup: "enabled",
},
},
})
if err != nil {
return fmt.Errorf("could not marshal layer data to YAML: %w", err)
}
err = pebble.AddLayer(&client.AddLayerOptions{
Combine: true,
Label: "myapp",
LayerData: layerData,
})
if err != nil {
return fmt.Errorf("could not add pebble layer: %w", err)
}
return nil
}
Install the go dependencies:
go mod tidy
3.2 Update the charm definition¶
Add a requires section to the charmcraft.yaml file:
...
requires:
logging:
interface: loki_push_api
limit: 1
3.3 Build the charm¶
Build the charm:
charmcraft pack --verbose
3.4 Deploy the charm¶
Deploy the charm to your Kubernetes cluster:
juju deploy ./myapp-k8s_amd64.charm --resource myapp-image=ghcr.io/gruyaume/myapp:latest
3.5 Deploy COS Lite¶
Create a new Juju model for Canonical Observability Stack (COS):
juju add-model cos
Deploy the COS Lite bundle:
juju deploy cos-lite
Create an integration offer for Loki:
juju offer cos.loki:logging
Retrieve the Grafana admin password:
juju run grafana/leader get-admin-password
You should see output similar to this:
guillaume@courge:~$ juju run grafana/leader get-admin-password
Running operation 13 with 1 task
- task 14 on unit-grafana-0
Waiting for task 14...
admin-password: NwrZneKKBZLn
url: http://10.0.0.3/cos-grafana
Navigate to the Grafana URL in your web browser, login with the admin username and the password returned by the action.
3.6 Integrate myapp-k8s with loki-k8s¶
Switch back to the demo model:
juju switch demo
Consume the Loki integration offer:
juju consume cos.loki
Integrate myapp-k8s with loki-k8s:
juju integrate myapp-k8s:logging loki:logging

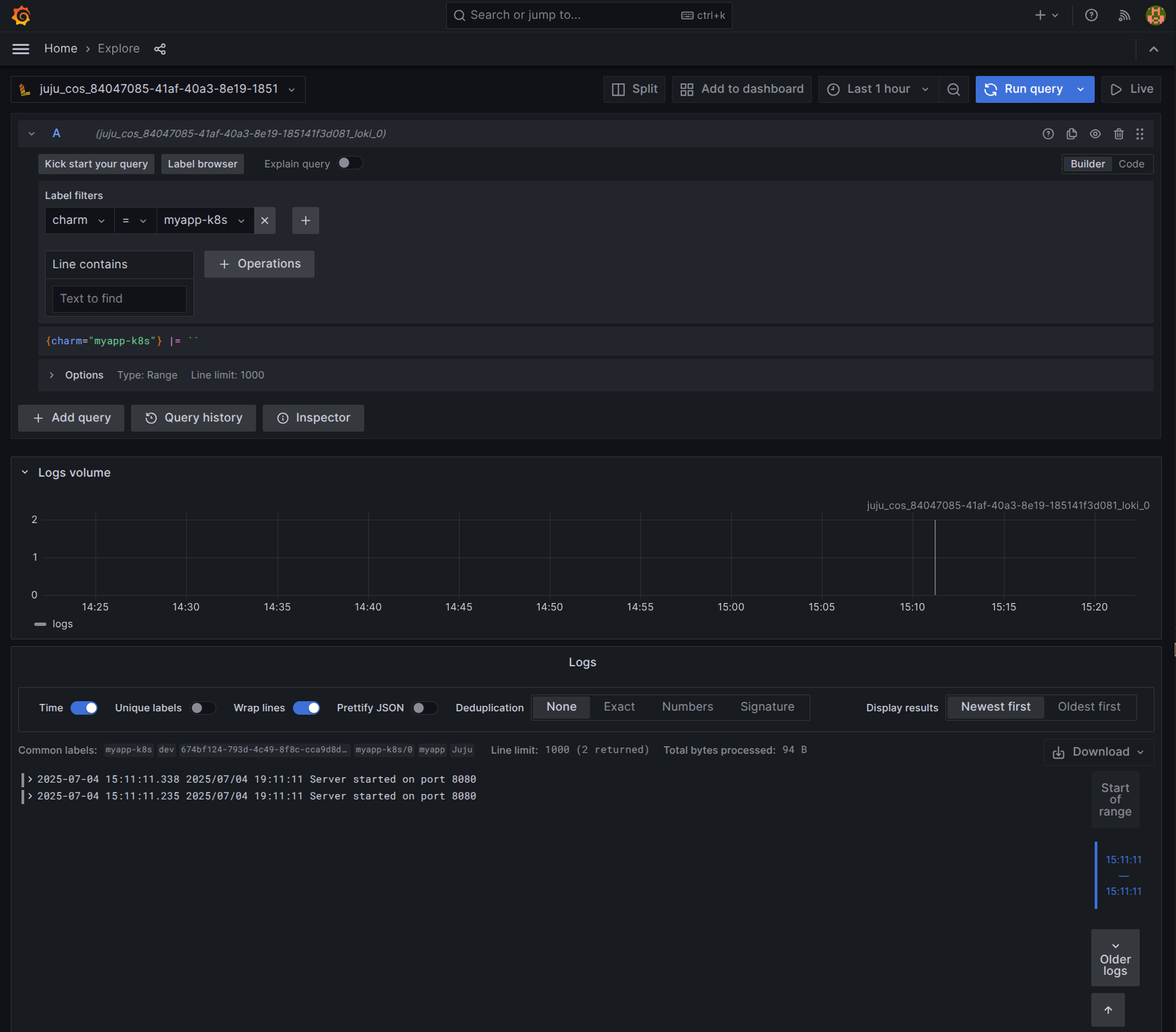

3.7 Visualize the logs in Grafana¶
Navigate Grafana in your web browser, click on the Explore icon in the left sidebar, click on the Loki data source, and enter the following query: {charm="myapp-k8s"}. You should see the logs from your myapp-k8s charm, specifically Server started on port 8080.
